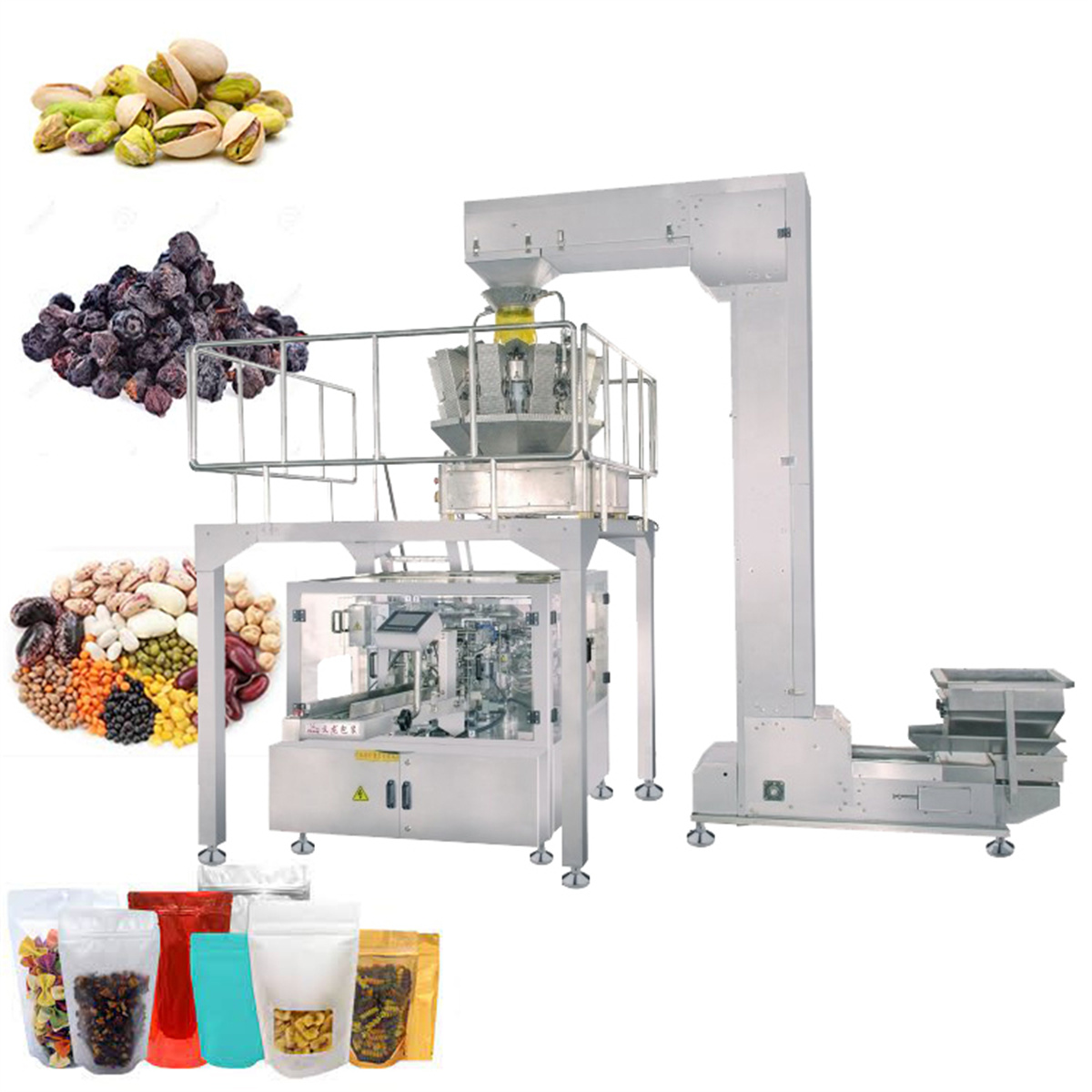

Doypack Packaging Machine

Doypack Packaging Machine

Doypack Packaging Machine

Bag type Stand up pouch, flat pouch, pe pouch, gusset pouch, zipper pouch, retort pouch, spout pouch Machine Size Length:4500mm Width: 2500mm Height:3600mm Suitable for nuts, chips, fried food, frozen food, pet food, tea bag etc




WORK PROCESS

1.Bag Feeding 2.Optional  Zipper open and  Date print3.Bag mouth and bottom open
4. Product fill 5.Option:  Solid :Nitrogen charge,Powder:Bag mouth clean,
Liquid:Secondary filling 6.Heat sealing 7.Heat sealing 8.Output



Product Application



Case



Stand up pouch,Flat pouch,pe pouch,Gusset pouch,Zipper pouch,Retort pouch,W: 80-270mm L: 100-380mm

bag type and size range

10g-3kg Up to 90 Pouches/Min

Pack compacity

All kinds of grains and solids material, nuts, chips, fried food, frozen food, pet food,Home Meal Replacement

Available Products

REQUEST A QUOTE >

GALLERY & VIDEO

SPECIFICATION

Power supply380v 3phase 50Hz
Compressed airabout 5~8kgf/cm²,0.4m³/min
Drive methodCam
Fill station2
sealing stylestraight/net type
Workstation8/10 station
Min bag width80mm
Max bag width305mm
Noise from running machinewithin 75db

FINTELLIGENT

With a device can against sealing vacant pouches to make sure that if there is no fill, there will be no seal.

Patented gripper system

maximum precision

flexible pouch type: stand-up pouches with zipper or corner spouts, quad pouches and pouches with customers’ design

Flexible production speed 15-90 pouches/min.

Long work time and lifetime can work 24 hours a day, only one day off for maintenance per month.

Easy to operate and maintain, one person is enough.

Easy conversion with different scales, fillers,pumps.

High profitability can replace at least 7 workers for packaging.

Low energy and maintenance costs, only a few spare parts need to change.

Fast delivery of spare parts, for example, max 3 normal days to reach you

STANDARD ACCESSORIES

a).Tools

Number

name

quantity

1

Tool box

1

2

Allen key

1set

3

Open spanner

1set

4

Iron brush

1

5

Philips screwdriver

1

6

slotted screwdriver

1

OPTIONAL DEVICE

Zipper open

Metal detector

check weigher

inkjet printer

Zipper close

multihead weigher
